Our guides are experienced and fully
prepared to make your tour a safe, pleasurable and memorable adventure.
Each tour begins with a thorough safety and operational instruction and
test drive to ensure everyone is aware of safe riding techniques and
the mechanical operation of the ATV. We provide helmets, safety goggles and gloves for
the protection of each rider. Equipment boxes on the guide machines contain First Aid boxes, tools,
refreshments and also a place where clients can stow cameras, sun block,
extra clothing, etc. and keep it clean.
We recommend you wear long pants, hiking
or sturdy footwear (boots are best), and a long sleeved shirt or light
jacket. |
|
Our customer ATVs are current model, 4 wheel drive, fully automatic,
Honda Canadian Trail Edition 420 (power steering)
& 400 cc machines and
are very easy for first-time riders to learn on and extremely capable of
tackling the toughest trails in Canada.
We take our customer's comfort and safety seriously!
 |
|
|
|
Depending on weather conditions, rain gear and cold weather
clothing may be required!
|
It can be muddy
or dusty on the trail so be prepared.
YOU WILL GET DIRTY! Don't forget
your camera!
Andrew Ryeland (owner) 2001 below and 2012 above.
 |
TRX420FPA
| ENGINE
TYPE |
Liquid-cooled,
semi-dry-sump, longitudinally mounted, single-cylinder four-stroke |
| DISPLACEMENT |
420 cc |
| BORE
& STROKE |
86.5 mm x 71.5 mm |
| COMPRESSION
RATIO |
9.9 : 1 |
| VALVE
TRAIN |
OHV, 2-valve |
| FUEL
DELIVERY |
PGM-FI electronic
fuel injection |
| TRANSMISSION |
Fully automatic,
five speed, Dual-Clutch-Transmission with selectable Electric Shift
Program (ESP) and reverse. |
| POWER
STEERING |
Yes |
| FINAL
DRIVE |
2WD/4WD; direct
front and rear driveshafts with 2WD/4WD shifter and torque-sensing
front differential |
| FRONT
SUSPENSION |
Independent
double-wishbone with adjustable shocks; 170 mm (6.7 in.) travel |
| REAR
SUSPENSION |
Swingarm with
single shock; 170 mm (6.7 in.) travel |
| TIRES |
24 x 8 - 12
front; 24 x 10 - 11 rear |
| BRAKES |
Front dual 190 mm
hydraulic discs; rear 160 mm sealed mechanical drum |
| LENGTH |
2,103 mm (82,8
in.) |
| WIDTH |
1,204 mm (47,4
in.) |
| GROUND
CLEARANCE |
183 mm (7.2 in.) |
| SEAT
HEIGHT |
856 mm (33.7 in.) |
| WHEELBASE |
1,267 mm (49.9
in.) |
| CURB
WEIGHT |
291 kg (642 lb)
including required fluids and full tank of gas - ready to ride |
| FUEL
CAPACITY |
14.7 litres,
including 4.9 litre reserve |
TRX500 Rubicon
DCT IRS EPS
| ENGINE
TYPE |
Liquid-cooled
longitudinally mounted single-cylinder four-stroke |
| DISPLACEMENT |
475
cc |
| BORE
& STROKE |
92
mm x 71.5 mm |
| COMPRESSION
RATIO |
9.5:1 |
| VALVE
TRAIN |
OHV,
2 valves |
| FUEL
DELIVERY |
PGM-FI
electronic fuel injection |
| TRANSMISSION |
Fully
automatic, five-speed, Dual-Clutch Transmission (DCT) with
Selectable Electric Shift (ES) plus Dual-Range Sub transmission
and reverse |
| POWER
STEERING |
Standard |
| FINAL
DRIVE |
2WD/4WD;
direct front and rear driveshafts with switchable 2WD/4WD and
torque-sensing/locking front differential |
| FRONT
SUSPENSION |
Independent
double-wishbone with adjustable hydraulic shocks; 185 mm (7.3 in.)
travel |
| REAR
SUSPENSION |
Independent
dual arm with hydraulic shocks; 215 mm (8.5 in.) travel |
| TIRES |
Front:
25 x 8 - 12 Rear: 25 x 10 - 12 |
| BRAKES |
Front:
dual 190 mm hydraulic discs Rear: 170 mm hydraulic disc |
| LENGTH |
2,147
mm (84.5 in.) |
| WIDTH |
1,205
mm (47.4 in.) |
| GROUND
CLEARANCE |
239
mm (9.4 in.) |
| SEAT
HEIGHT |
909
mm (35.8 in.) |
| WHEELBASE |
1,292
mm (50.9 in.) |
| CURB
WEIGHT |
327
kg (721 lbs.) |
| FUEL
CAPACITY |
14.7
liters, including 4.9-liter reserve |
| COLOUR |
Red,
Honda Phantom CamoTM |

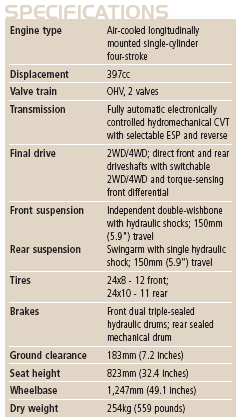

TRX400 Canadian Trail Edition
| Model |
TRX400FG |
| Model |
Fourtrax
Canadian Trail Edition GPScape |
| Category |
Multi
Purpose |
| Engine
type |
4-stroke |
| Cylinder |
1 |
| Valvetrain |
OHV
2-valve |
| Cooling
system |
Forced air |
| Displacement
(cc) |
397.0 |
| Bore
(mm) |
85.0 |
| Stroke
(mm) |
70.0 |
| Compression
ratio |
9.1:1 |
| Carburetion
(mm) |
32 mm CV |
| Ignition |
CD |
| Starter |
Electric /
recoil |
| Gearbox
operation |
Automatic
CVT with reverse |
| Final
drive |
Shaft |
| Front
suspension type |
Independent
double-wishbone, hydraulic shocks |
| Front
suspension travel (mm) |
150 |
| Rear
suspension type |
Swing arm
with single hydraulic shock |
| Rear
suspension travel (mm) |
150 |
| Front
brakes |
Dual
hydraulic drums |
| Rear
brakes |
Mechanical
drum |
| Front
tires width (inch) |
24 |
| Front
tires height (inch) |
8 |
| Front
tires inner diameter (inch) |
12 |
| Rear
tires width (inch) |
24 |
| Rear
tires height (inch) |
10 |
| Rear
tires inner diameter (inch) |
11 |
| Length
(mm) |
2032 |
| Width
(mm) |
1115 |
| Height
(mm) |
1148 |
| Weelbase
(mm) |
1247 |
| Seat
height (mm) |
823 |
| Ground
clearance (mm) |
183 |
| Weight
(kg) |
253.6 |
| Fuel
capacity (L) |
14.4 |
| Front
rack capacity (kg) |
30 |
| Rear
rack capacity (kg) |
60 |
| Towing
capacity (kg) |
386 |
| Speedometer |
std |
| Odometer |
std |
| Colour(s) |
Red, Green |
|
